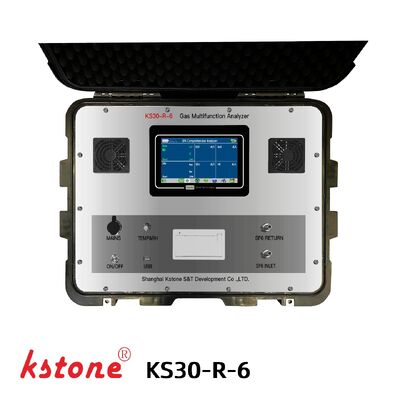

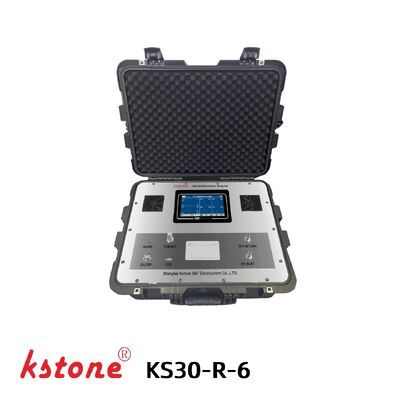

Emission-Free SF6 Comprehensive Tester with Modular Testing System for High-Precision Gas Analysis

  • Emission-Free SF6 Comprehensive Tester with Modular Testing System for High-Precision Gas Analysis
  • Emission-Free SF6 Comprehensive Tester with Modular Testing System for High-Precision Gas Analysis
উৎপত্তি স্থল সাংহাই
পরিচিতিমুলক নাম KSTONE
সাক্ষ্যদান ISO9000
মডেল নম্বার কেএস 30-আর -6
ন্যূনতম চাহিদার পরিমাণ 1
মূল্য $22000-25000
প্যাকেজিং বিবরণ শক্ত কাগজ / কাঠের বাক্স
ডেলিভারি সময় 15 কাজের দিন
পরিশোধের শর্ত টি/টি
যোগানের ক্ষমতা প্রতি বছর 1000 ইউনিট
পণ্যের বিবরণ
একটি বার্তা রেখে যান
পণ্যের বর্ণনা
Environmentally Friendly SF6 Comprehensive Tester | Emission-Free Gas Analysis & Recycling System
KS30-R-6 Environmentally Friendly Emission-Free SF6 Comprehensive Tester with Recycling Function

The KS30-R-6 SF6 Comprehensive Tester is an advanced emission-free gas analysis system designed for modern GIS and high-voltage electrical equipment maintenance.

It integrates SF6 decomposition products detection, gas purity analysis, and humidity (dew point) measurement in a single modular platform.

With a built-in gas recycling and recovery function, the KS30-R-6 significantly reduces SF6 emissions, helping operators meet environmental protection requirements while maintaining high-precision diagnostics in the field.

KS30-R-6 main interface showing system overview and real-time SF6 monitoring dashboard
Key Features
User-friendly function selection interface for SF6 decomposition, purity, and humidity testing modules
Eco-Friendly Emission-Free Design

Built-in gas recycling system ensures zero-emission operation, reducing SF6 environmental impact.

Modular Testing System

Flexible configuration supports multiple measurement modules:

  • SF6 decomposition gas analysis
  • SF6 purity detection
  • SF6 humidity / dew point measurement
Portable Field Operation
  • 7-inch industrial touchscreen
  • More than 10 hours battery operation
  • Suitable for outdoor GIS maintenance
High-Precision Gas Analysis

Delivers stable and reliable detection of key SF6 condition indicators for power system safety.

Technical Specifications
SF6 Gas Decomposition Products Detection Module
Item Details
Measurement Range SO₂: 0-100 µL/L, H₂S: 0-100 µL/L, CO: 0-500 µL/L, HF: 0-10 µL/L
Accuracy ±10%
Resolution 0.1 µL/L
Response Time ≤60s
SF6 Purity Detection Module
Item Details
Measurement Range 0-100%
Accuracy ≤±0.5%
Repeatability ≤±0.2%
Resolution 0.01%
Response Time ≤60s
SF6 Humidity (Dew Point) Detection Module
Item Details
Dew Point Range -60°C ~ +20°C
Accuracy ±2°C
Resolution 0.1°C
Repeatability ±1°C
Response Time -60°C→20°C: 30-60s / 20°C→-60°C: 60-600s
Real-time measurement data display showing SF6 gas composition, purity, and dew point results
Whole Machine Technical Parameters
Parameter Details
Power Supply AC100-240V / 50-60Hz
Charger DC28V / 5A
Battery 18650 Lithium Battery, 21.6V / 20Ah
Operating Time >10 hours
Display 7-inch Color Touchscreen
Inlet Pressure 0.1-0.7 MPa
Max Recharge Pressure 0.7 MPa
Dimensions 562 × 440 × 240 mm
Weight ~27 kg
Applications
  • GIS (Gas Insulated Switchgear) maintenance
  • High-voltage substations
  • Power transmission & distribution systems
  • SF6 circuit breaker inspection
  • Preventive maintenance & diagnostics
System Advantages Summary
  • Emission-free SF6 handling system
  • Integrated multi-parameter gas analysis
  • High portability for field service engineers
  • Modular upgrade design for future expansion
  • Supports environmental compliance in power industry
Frequently Asked Questions
Q1: What is KS30-R-6 used for?

It is used for comprehensive SF6 gas condition analysis including decomposition products, purity, and humidity.

Q2: Does KS30-R-6 release SF6 gas during testing?

No. It uses an emission-free recycling system to prevent gas leakage.

Q3: Can the system be customized?

Yes, it supports modular configuration depending on testing requirements.

Q4: Is it suitable for field use?

Yes. It is portable with long battery life and a built-in touchscreen interface.


If you are looking for a reliable and environmentally friendly SF6 gas analysis solution, the KS30-R-6 emission-free comprehensive tester is ready to support your field applications.


Our technical team can provide:


  • Product selection guidance

  • Modular configuration customization

  • Technical specifications and datasheets

  • Global shipping and after-sales support



Please feel free to contact us for more information or a customized solution tailored to your project requirements.
